HYDRAULIC CYLINDERS

The Power of Fluids is Immense and Magnificent. Hydraulic Cylinders are Mechanical Actuators that run on the power of Fluids to produce Linear Motion. Archimedes Principle forms the basis of this Beautiful Gift to the Mankind. Today Hydraulic Cylinders are used in almost every industry each with a different application. From Huge Hydraulic Presses in Forging Industry to Packing Machines in Food Processing Industries Hydraulic Cylinders are present everywhere.

On broad Classification there are 2 types of Hydraulic Cylinders - Tie Rod Type and Welded type. This classification is based on the design and structure of the cylinder though the applications and sizes can vary from industry to industry. This huge versatility not only makes more-innovative designs possible, but makes many applications a reality that would not be practical or possible without cylinders.

GET A QUOTE

TIE - ROD TYPE

Tie Rod type Cylinders consist of Square or Rectangle shaped End-Cap and Front Cap to nut Supporting rods on the sides for higher Force. The majority of cylinders for industrial, heavy-duty applications use tie-rod construction.

GET A QUOTE

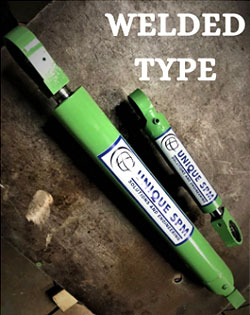

WELDED TYPE

Welded Type Cylinders consist of Flanges welded to the barrel or the end-cap. Such cylinders are usually lighter and more compact. They have wide applications in Mobile Equipment.

GET A QUOTE

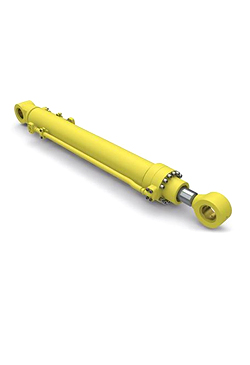

INDUSTRIAL HYDRAULIC CYLINDERS

We manufacture both SINGLE ACTING as well as DOUBLE ACTING Hydraulic Cylinders. Our cylinders are used widely in different industries and by world renowned companies because of our Products Quality and Service.

Cylinder specification range from:
- Bore- 25mm-400mm
- Stroke- 25mm-6000mm
- Piston Rod- 6mm-250mm
- Working Pressure- up to 350 Bar

Other than These we also manufacture:
- Spring Return Single Acting Cylinders
- Center Hole Single and Double Acting Cylinders
- Dump Hoist Cylinders

GET A QUOTE

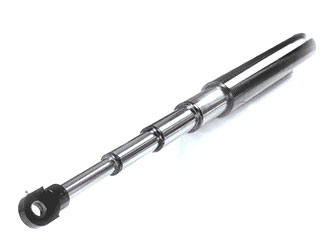

TELESCOPIC HYDRAULIC CYLINDERS

Bore sizes range from 50 mm -250 mm Working pressures of up to 170 bar (2500 psi), which can be customized according to customer needs Up to 5 stages, with a maximum stroke length of 6 meters in double acting applications

GET A QUOTE

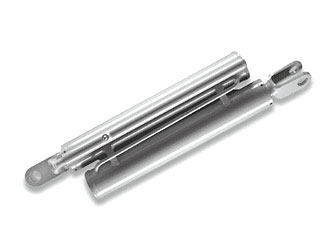

PIGGYBACK HYDRAULIC CYLINDERS

Used in applications that require a long extension-short retraction area

Bore size : 50 mm - 84 mm
Stroke range up to 1016 mm.
